After Undercoating

------------------------------

-------------------------

NOTE: The next series of photos show SOME if the inner panels of the vehicle being rustproofed.


Our rustproofing has the ability to creep into cavities and flow upward, sideways and downward into welds and seams.



-------------------------

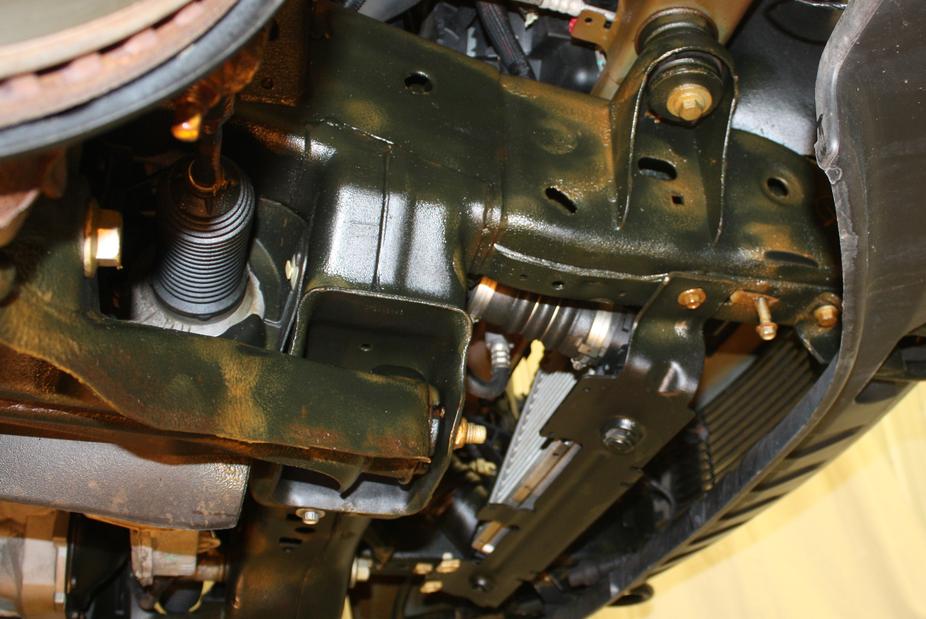

AFTER: Right front frame horn

Rust Coaters LLC

BY APPOINTMENT: 3005 Melby Street #4 - Eau Claire, WI 54703

FORD TRUCK

'Auto Undercoating' & 'Auto Rustproofing'

Review

-------------------------

After Undercoating


Owner: Scott Cameron

Eau Claire, WI

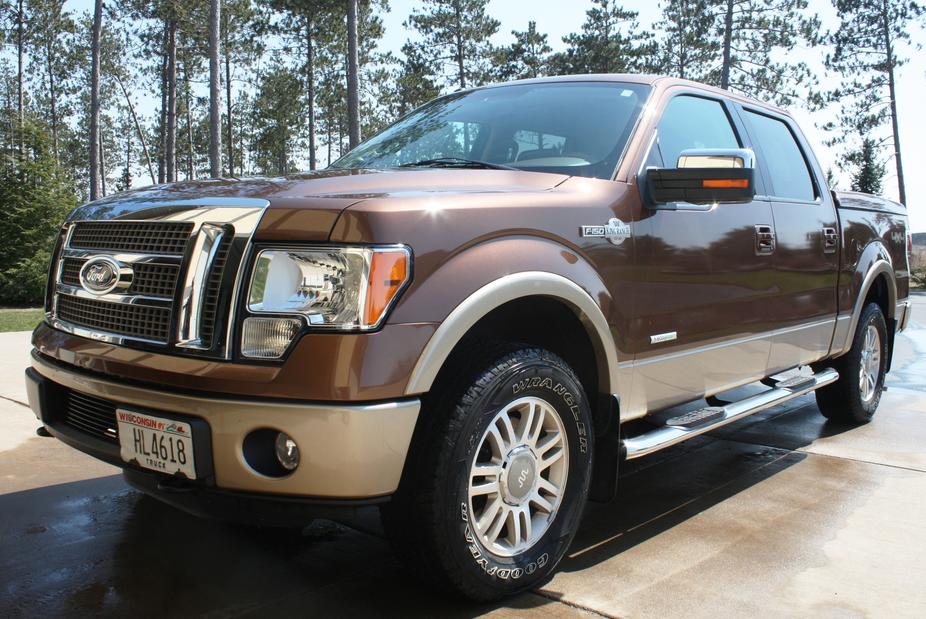

2011 Ford F150 4 x4

Miles: 053,521

World Class Rust Proofing

............................................

............................................

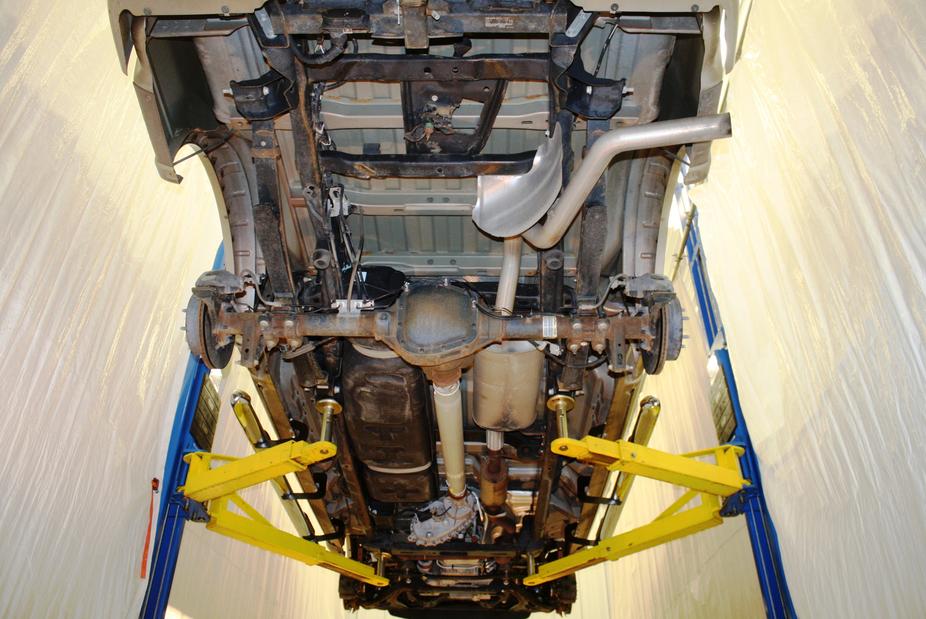

Before Undercoating

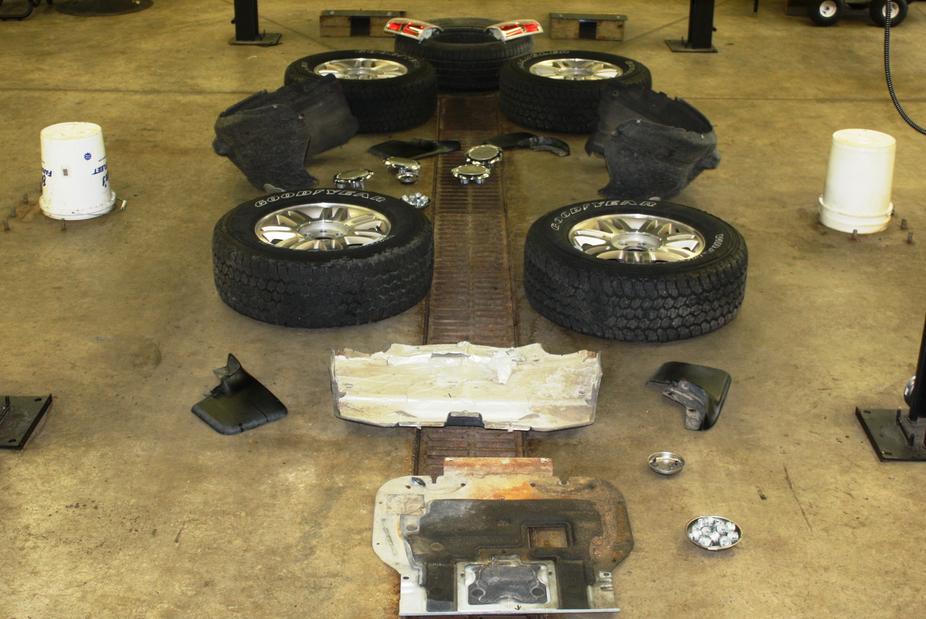

The ties, wheel well liners, under-body shields, tail lights are removed for better access to the undercarriage.

-------------------------

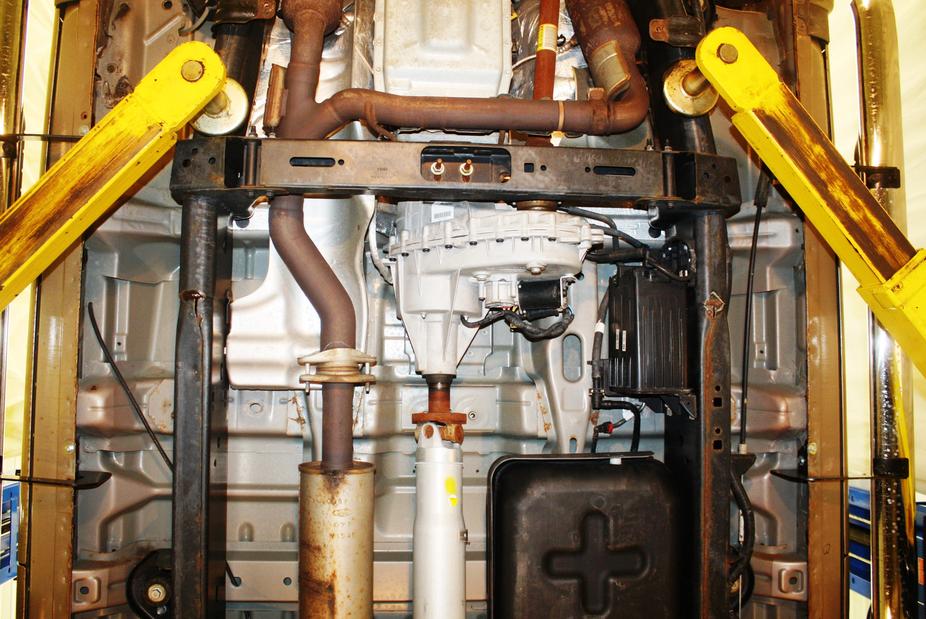

Before Undercoating


​A degreaser - salt neutralizer is applied.

-------------------------

Before Undercoating

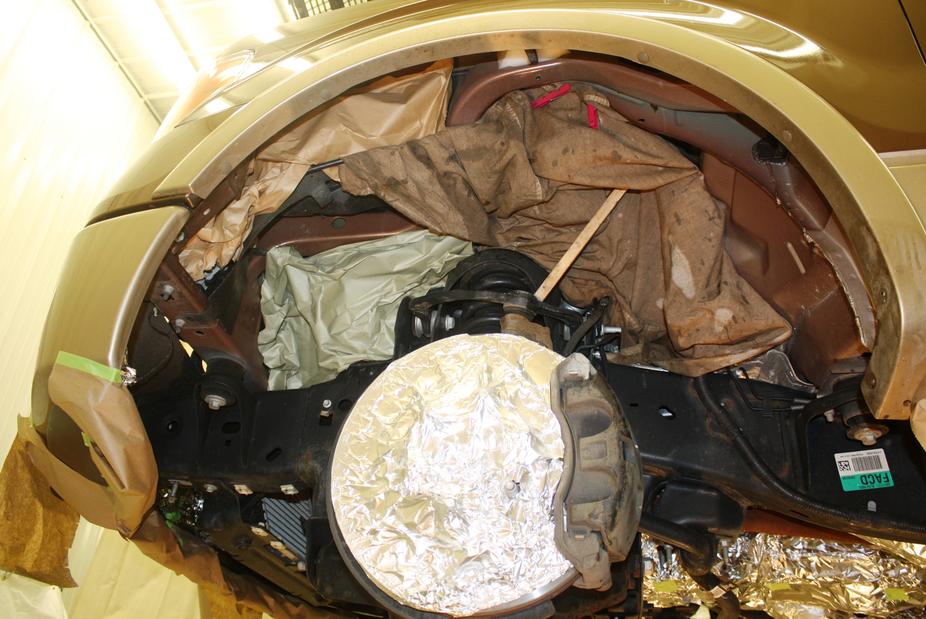

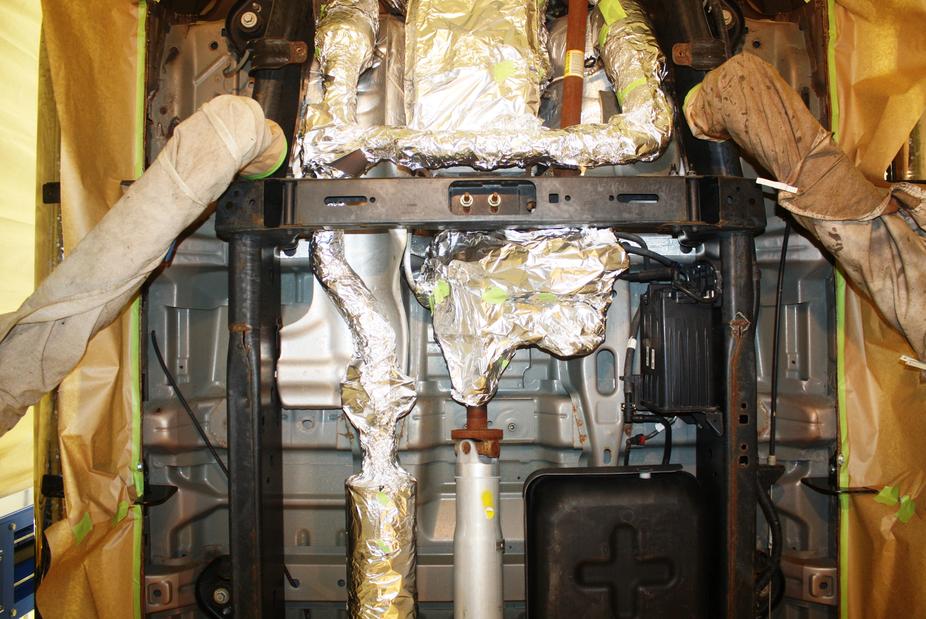

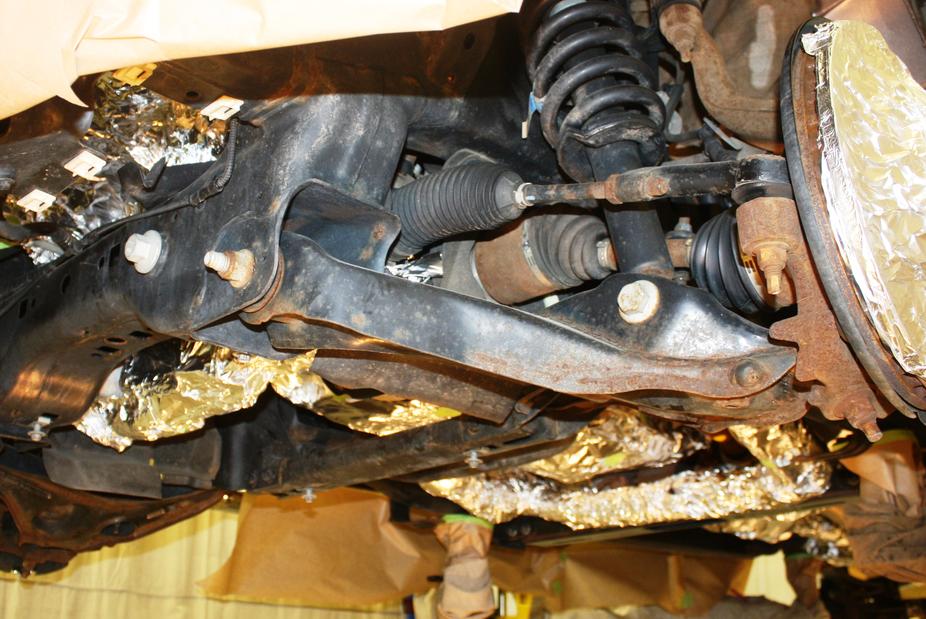

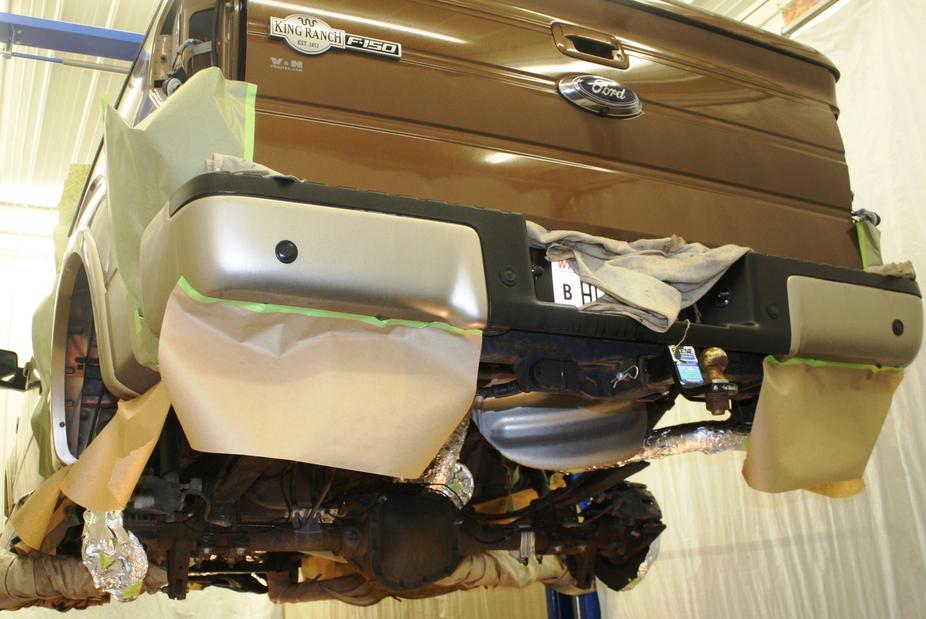

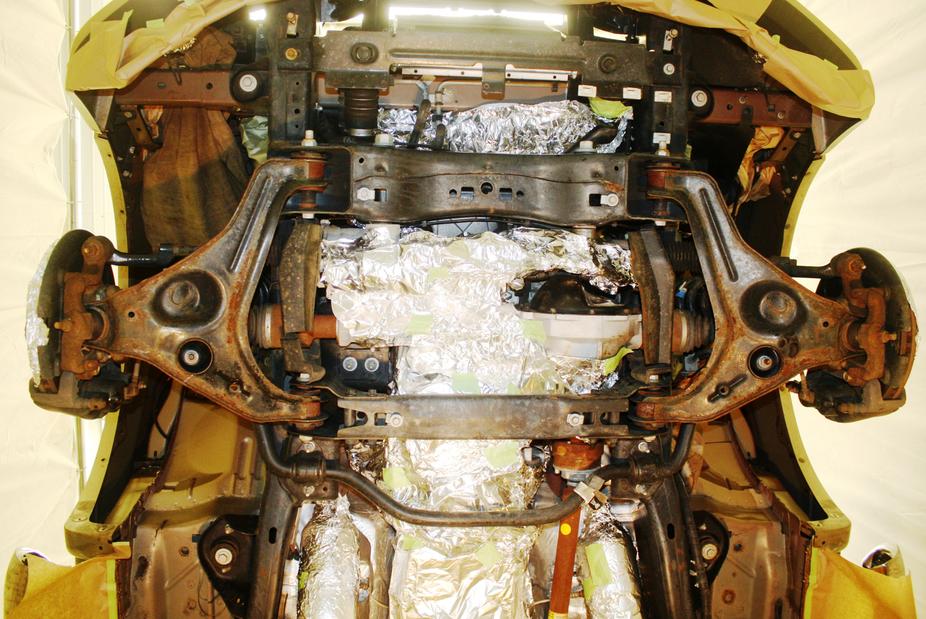

All the areas that are not to be undercoated are covered with tin foil and masking paper.

-------------------------

Happy Customer - who now has a vehicle that will last him a long time!

-------------------------

Before Undercoating

​​-------------------------

AFTER: Inside of rear bumper and brackets

AFTER

-------------------------

Rust Coating

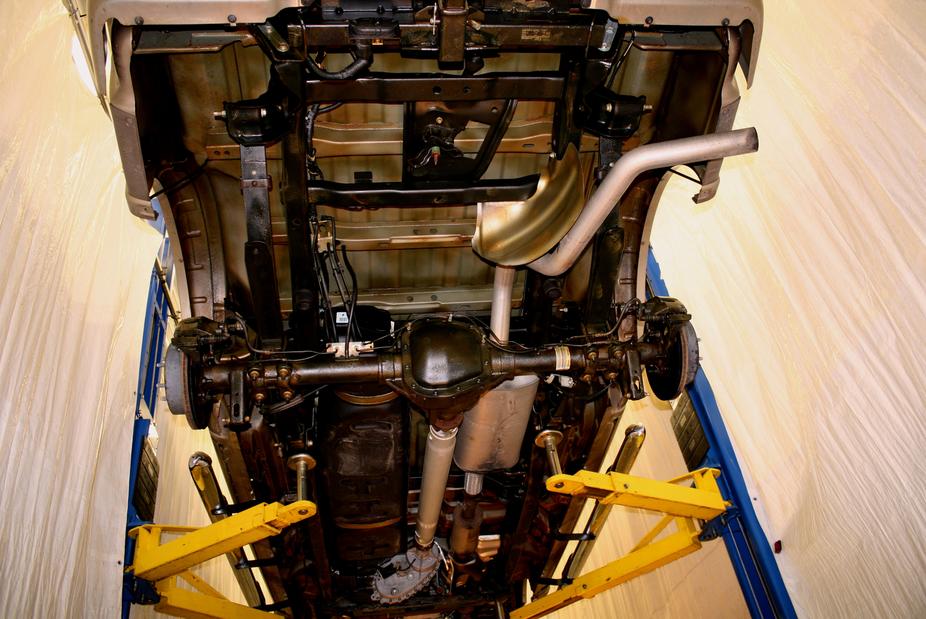

The underside is coated with a nice thick application.

-------------------------

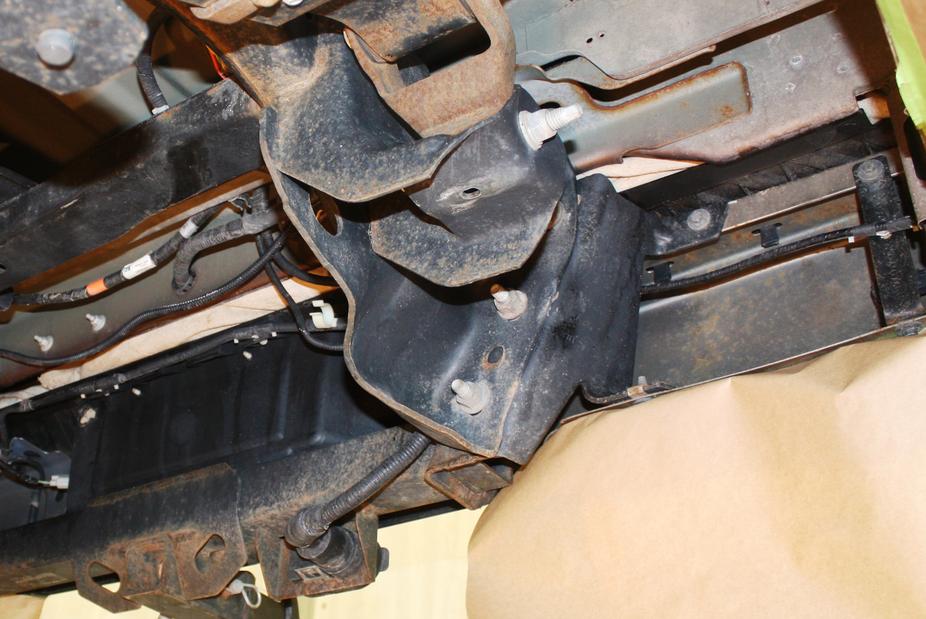

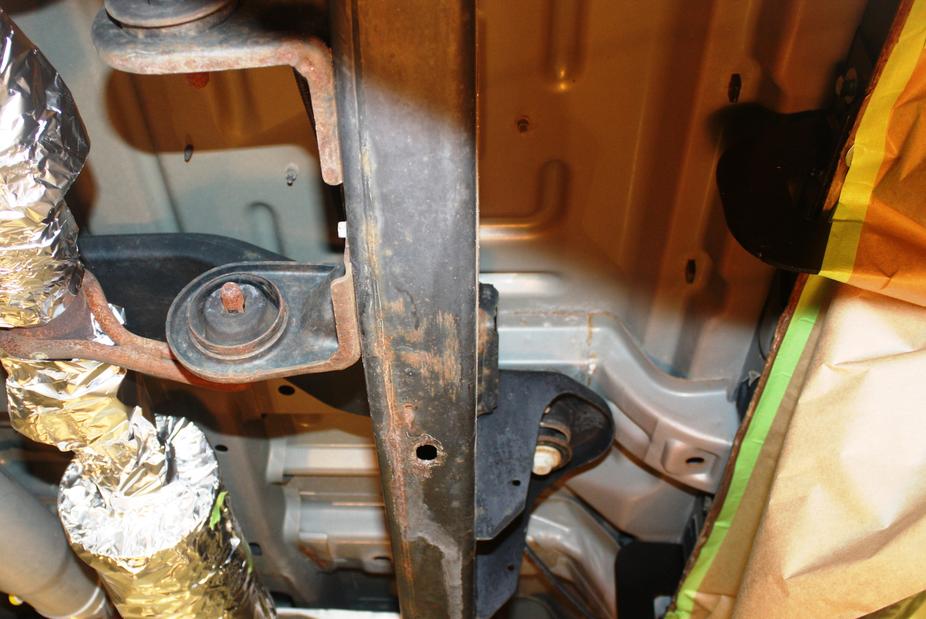

BEFORE: Right rocker and floor area

------------------------

Before Undercoating

CALL 9am - 9pm -7 days a week​
Phone:  715-590-4832​

-------------------------

Before Undercoating

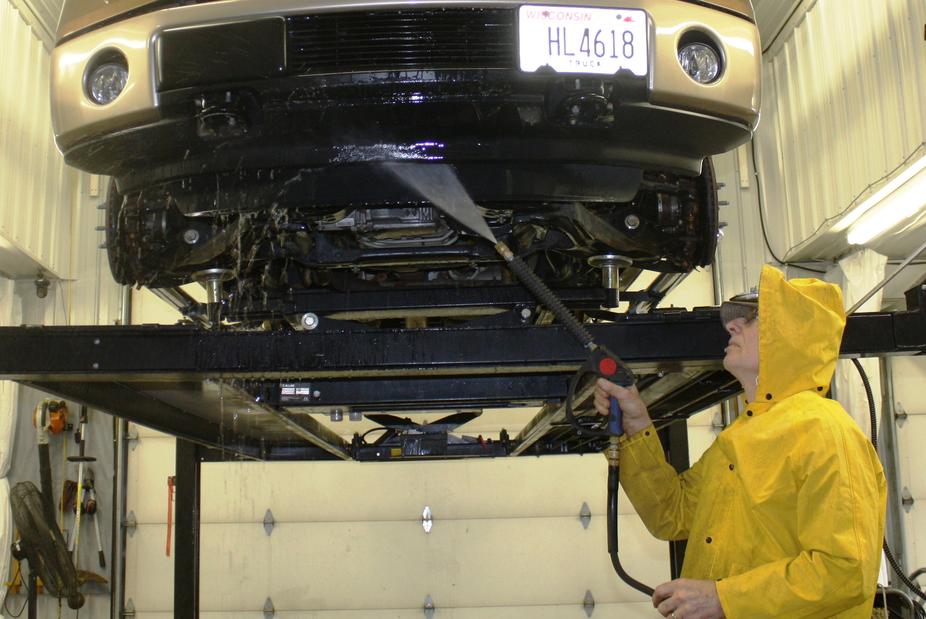

​​​The under-body is 'steam cleaned' with high-pressure hot water.

-------------------------

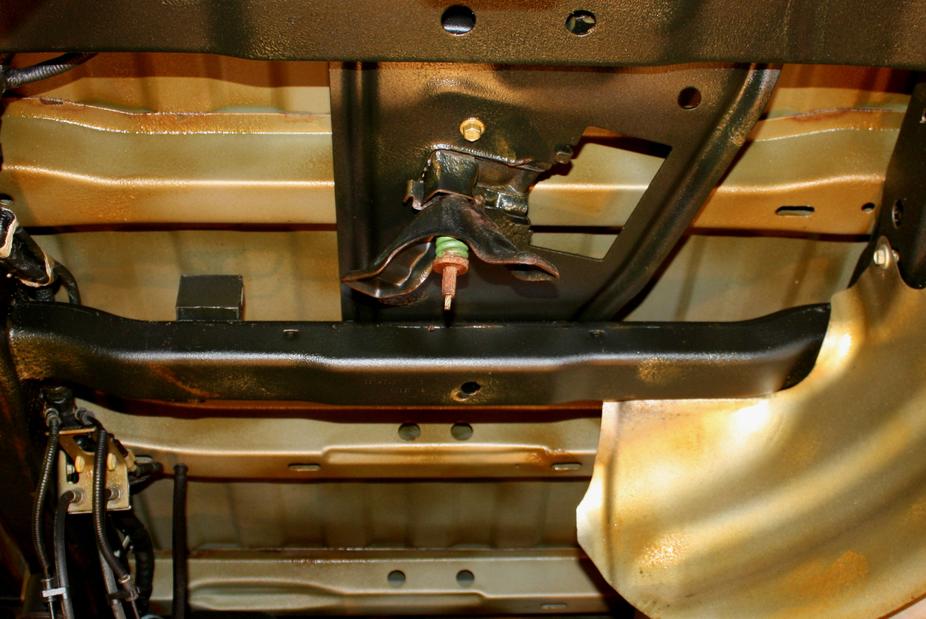

AFTER: Bottom side of pickup bed (spare tire area)

-------------------------

Before Undercoating

-------------------------

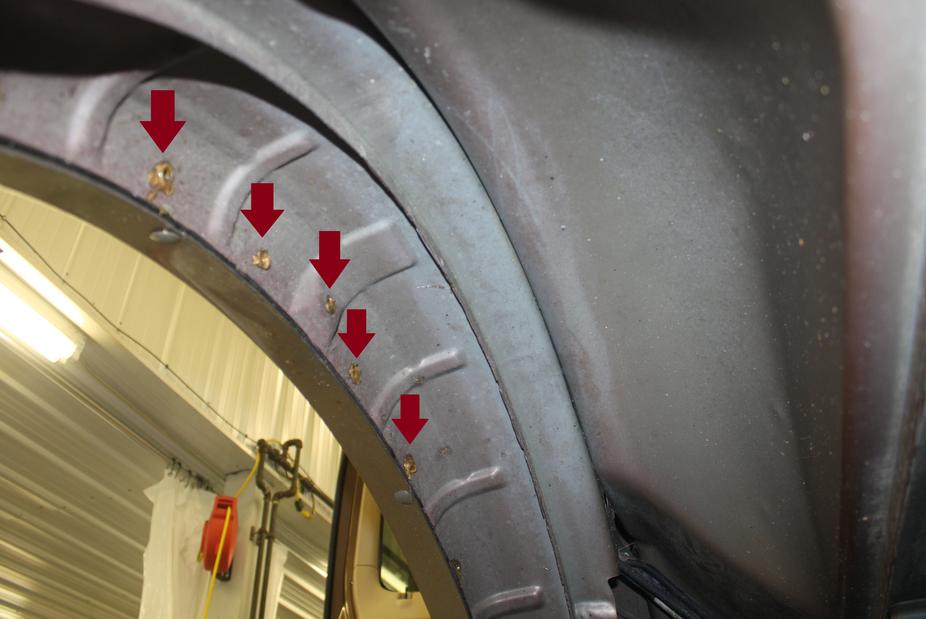

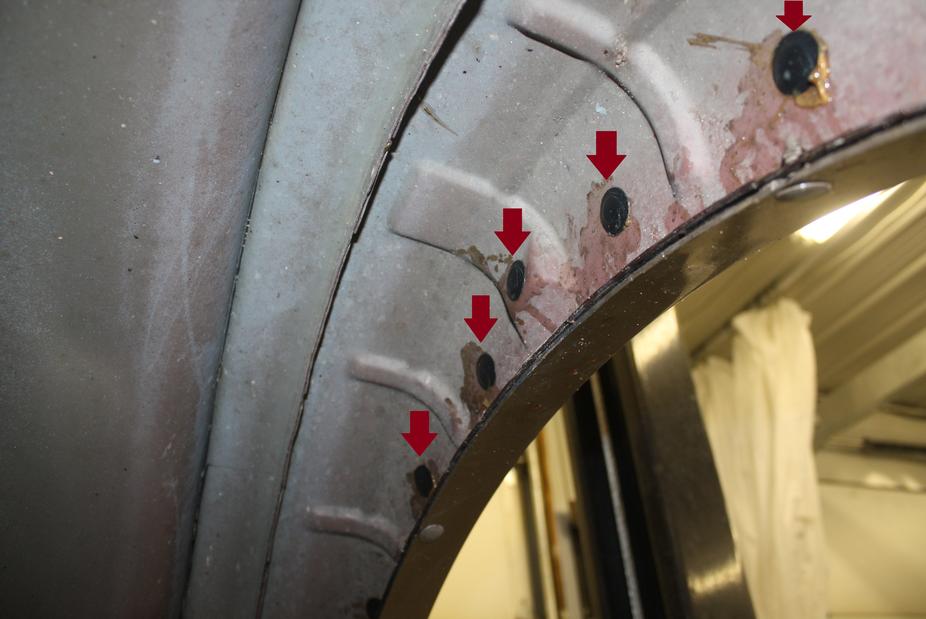

These holes are then capped-off with factory-looking plastic covers.

-------------------------

The Undercoating and Rustproofing Process

-------------------------

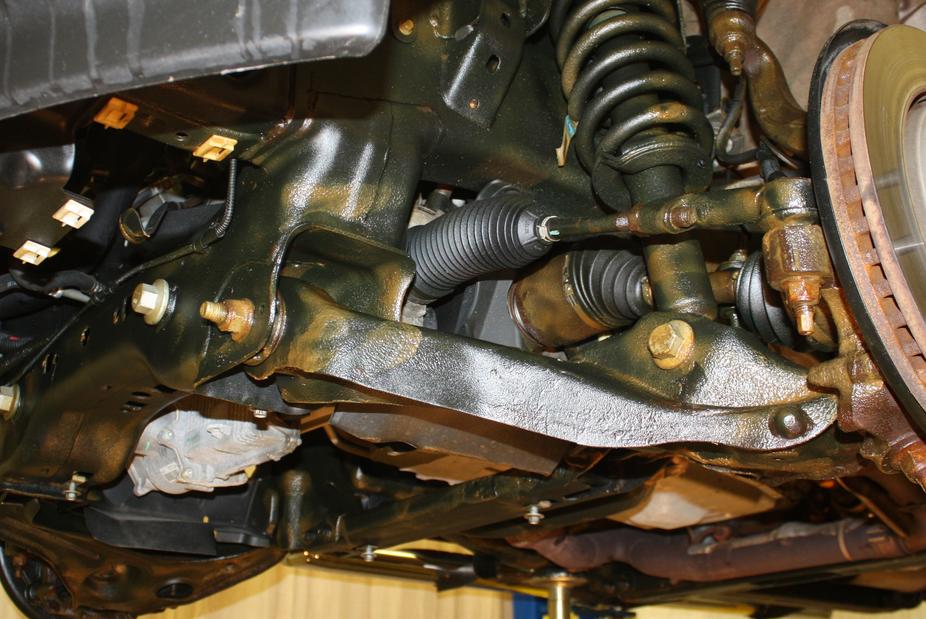

AFTER: Front Axle

-------------------------

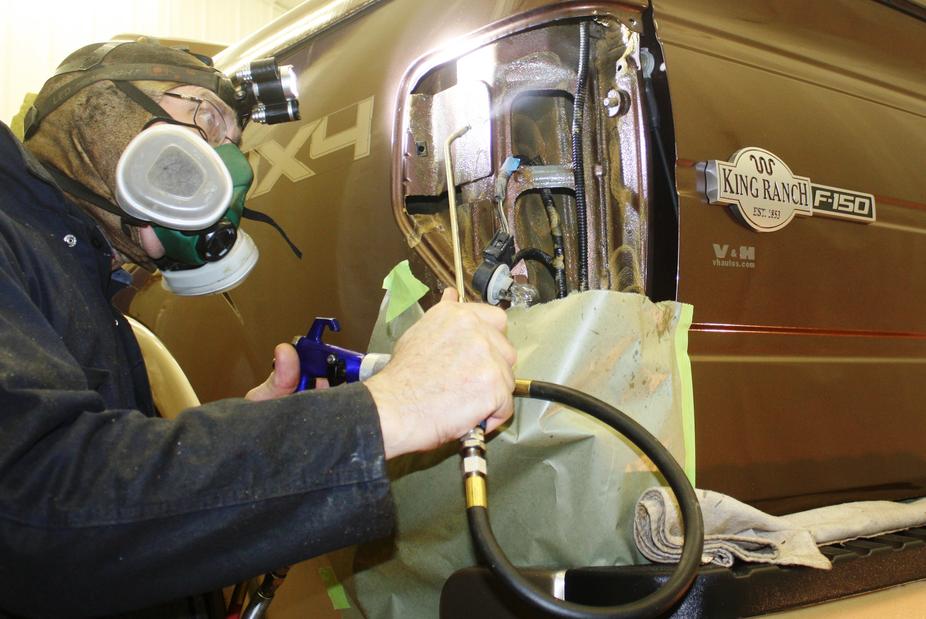

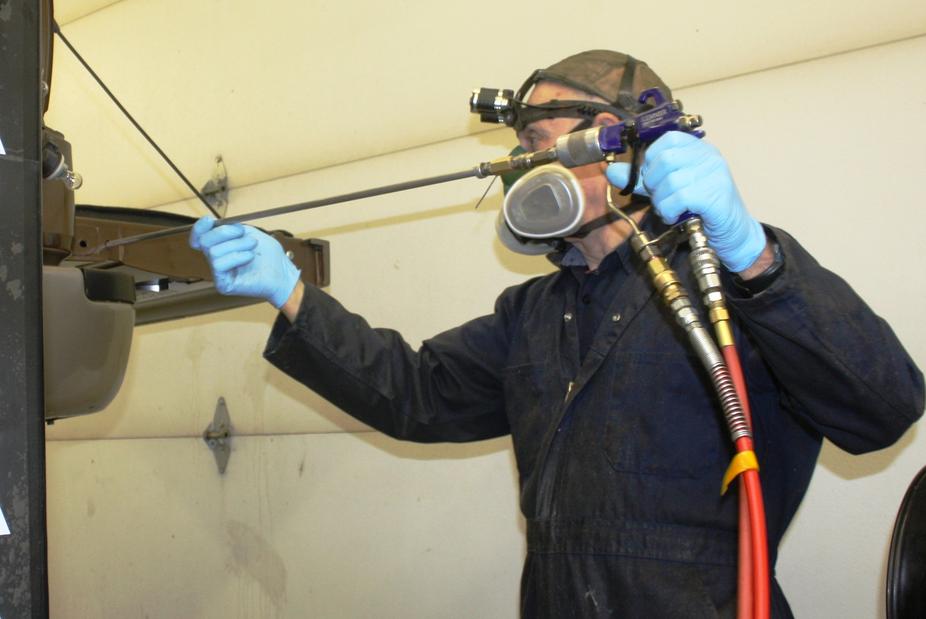

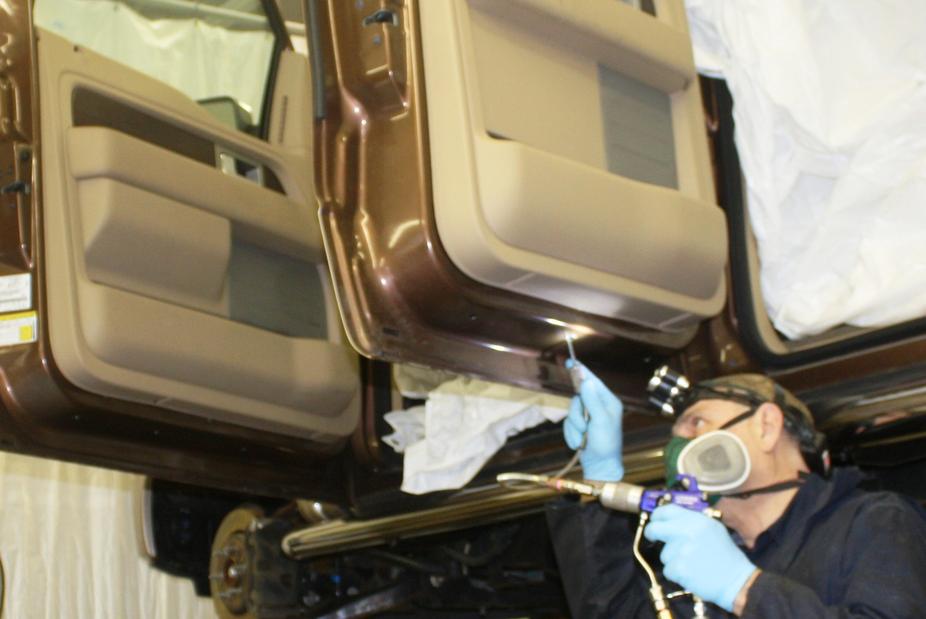

Rustproofing being applied to the doors.

-------------------------

BEFORE: Inside of rear bumper and brackets

-------------------------

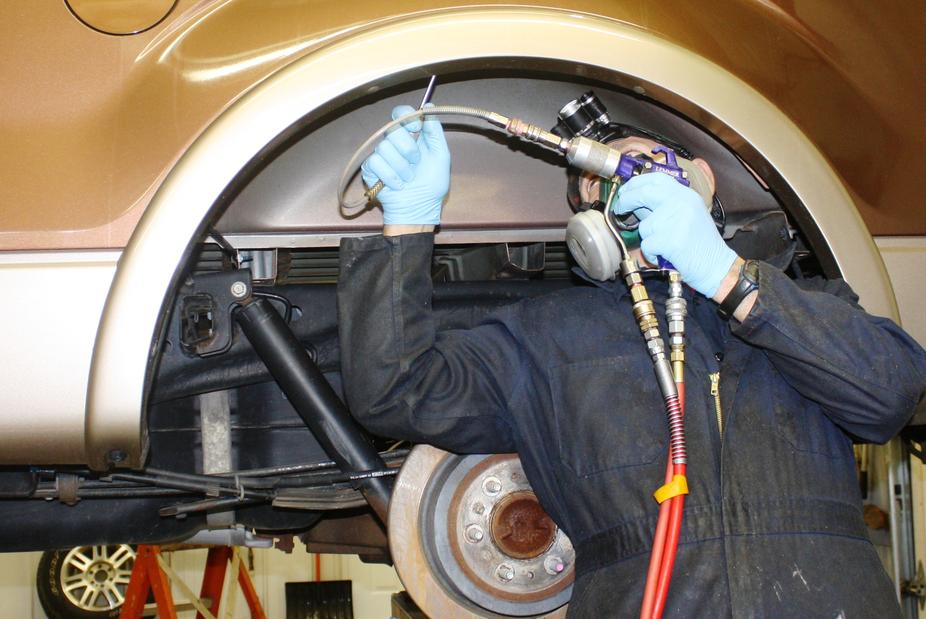

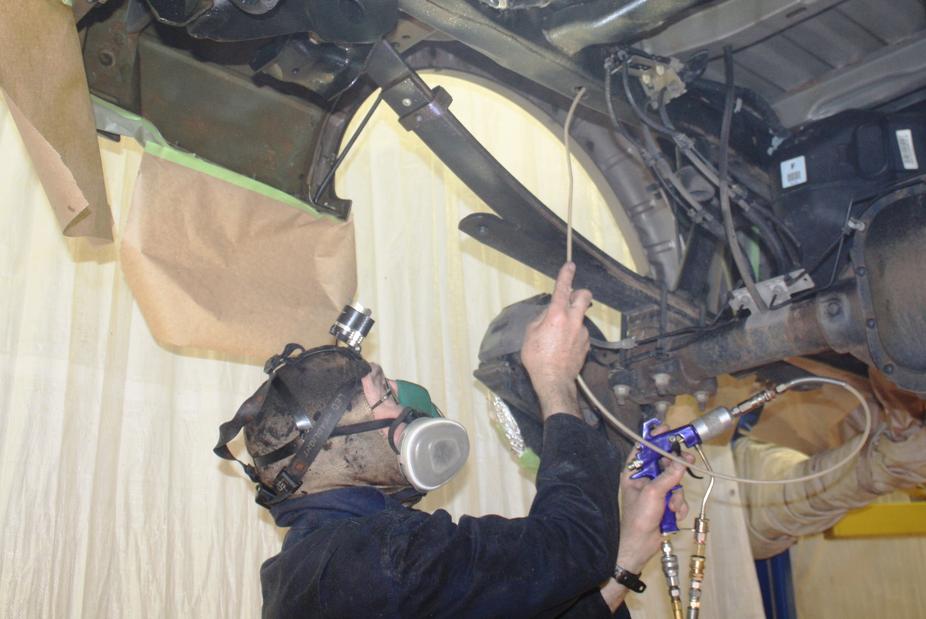

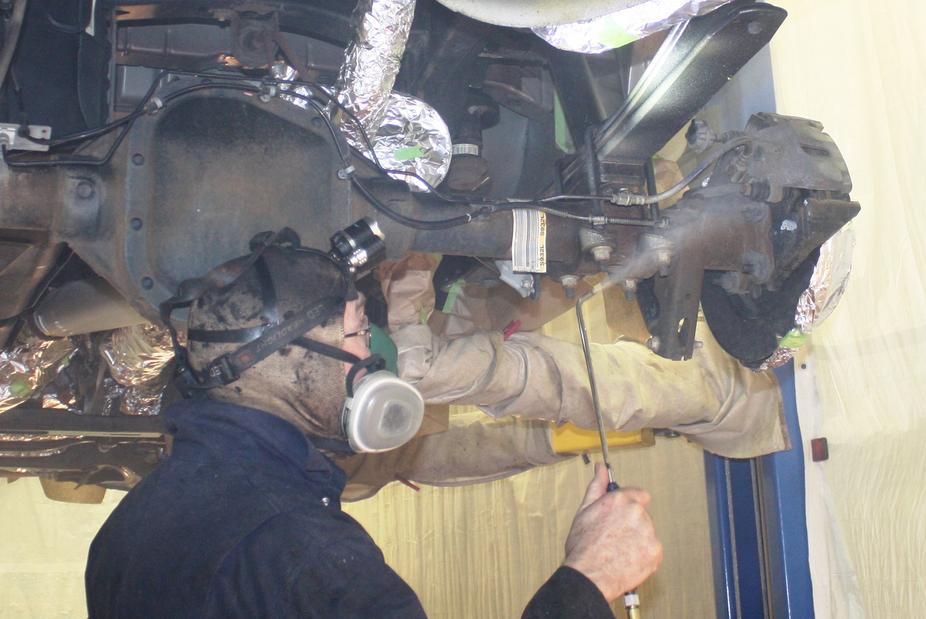

Rustproofing being applied to the rear inner wheel well gap.

-------------------------

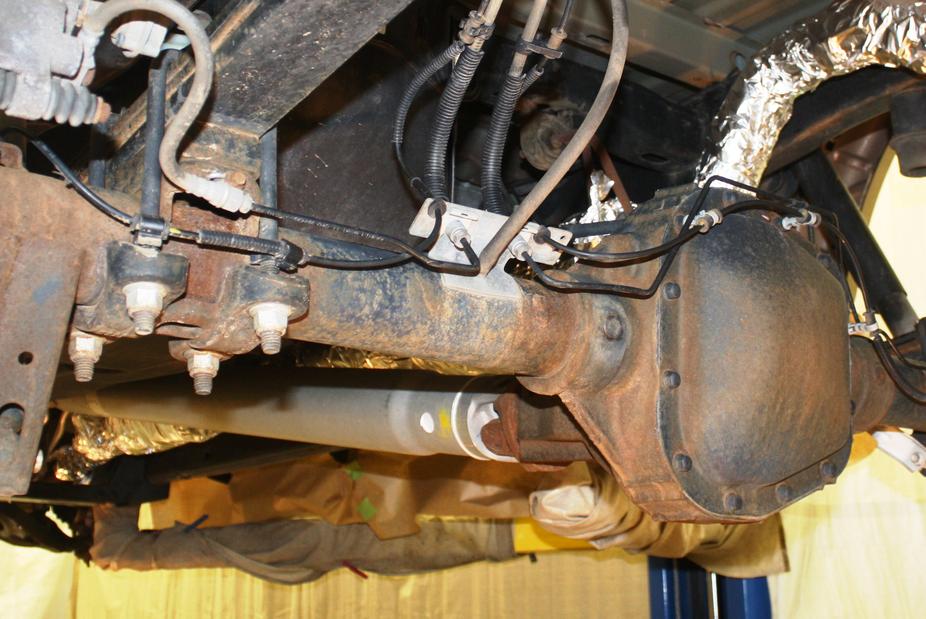

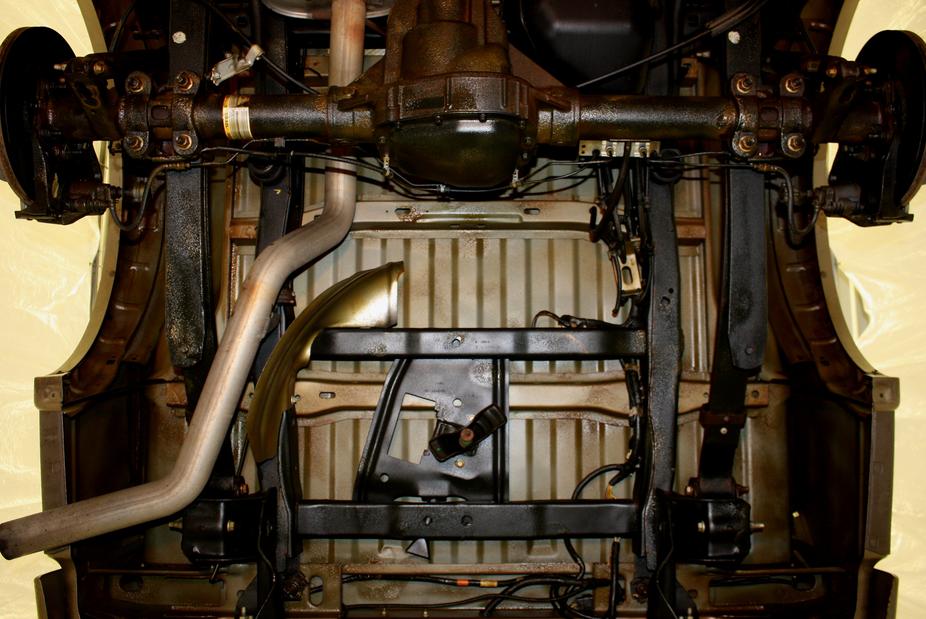

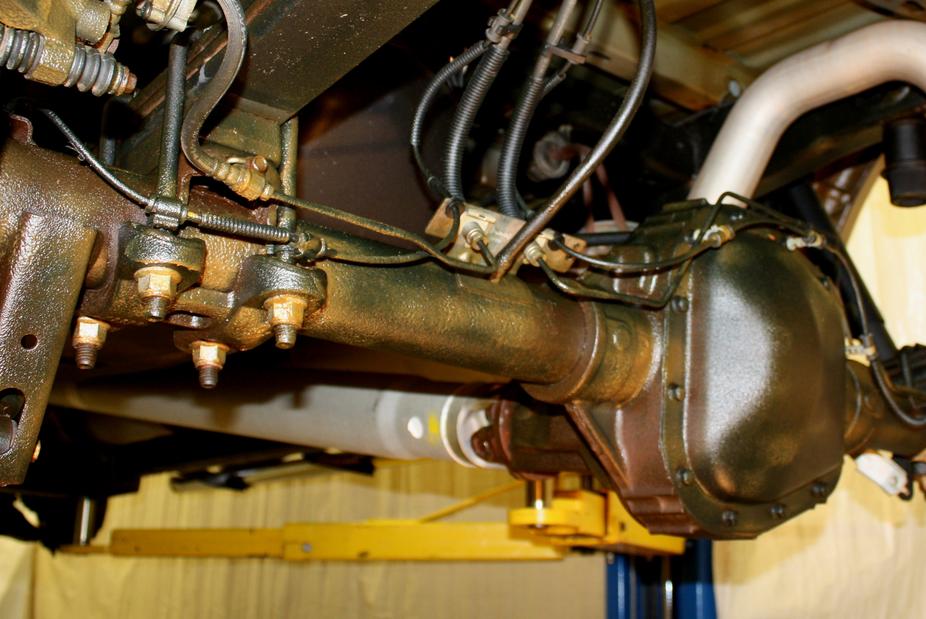

AFTER: Rear axle

-------------------------

Rustproofing being applied to rear gate.

-----------------------

Before Undercoating

------------------------

After Undercoating

-------------------------

AFTER: Right rocker and floor area

--------------------------

Before Undercoating

-------------------------

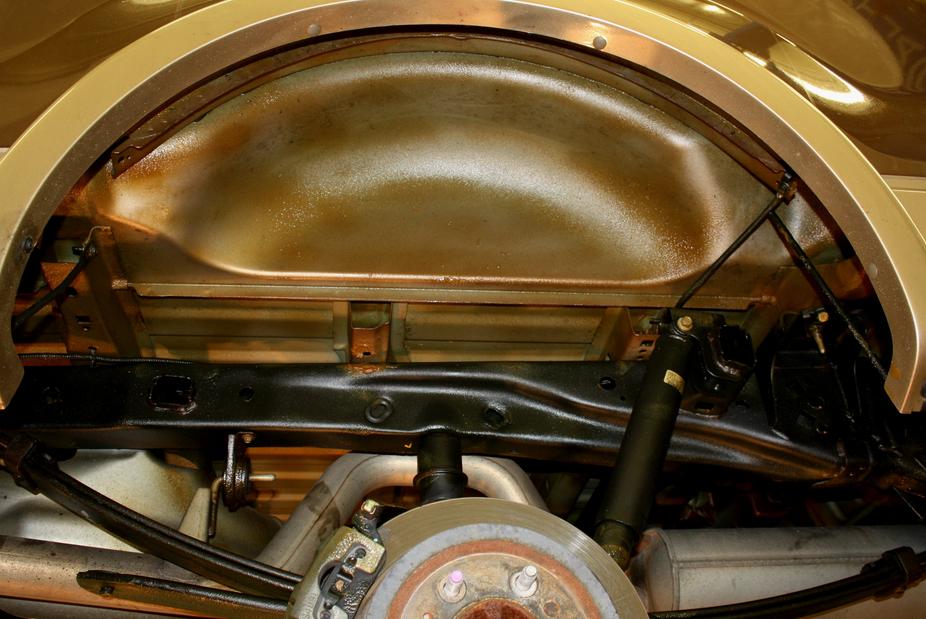

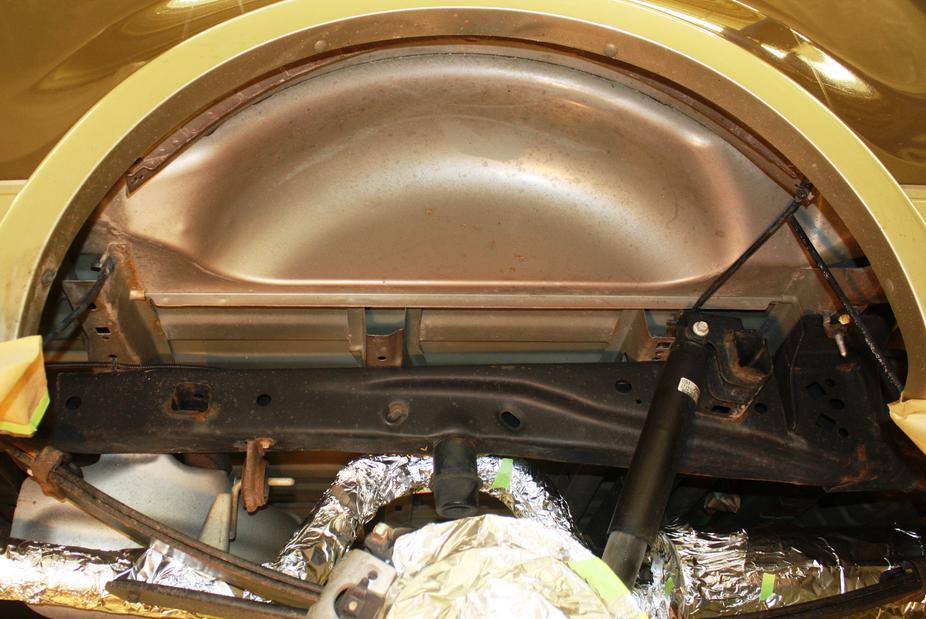

BEFORE: Right rear wheeel well

-------------------------

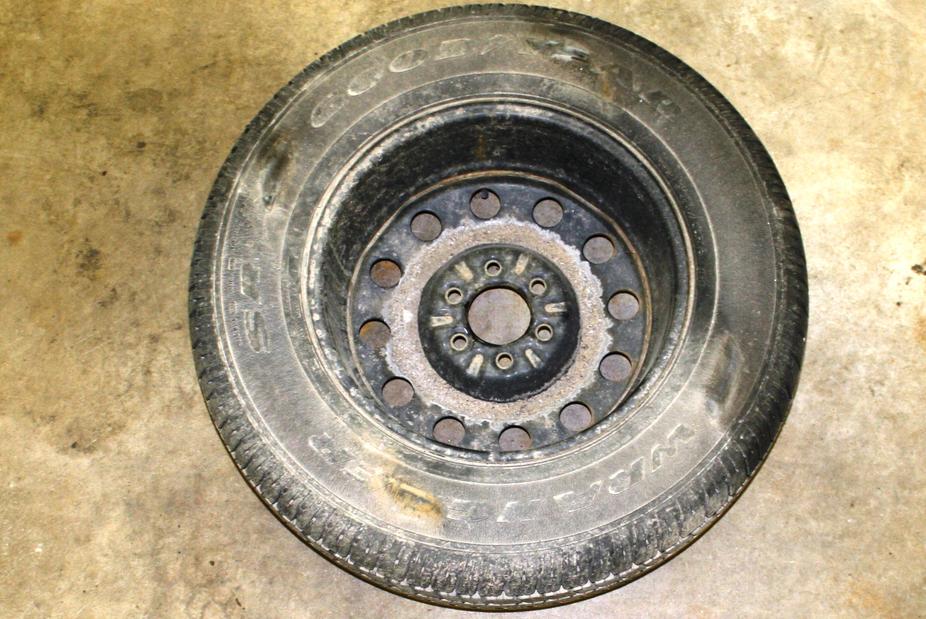

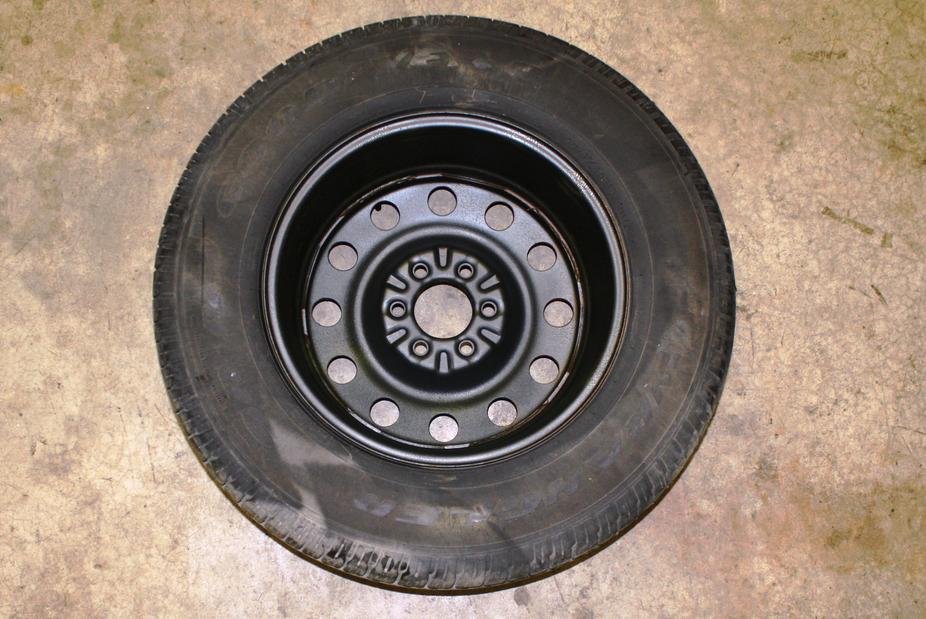

The spare tire is cleaned and the inside of the wheel is rustproofed.


BEFORE

-------------------------

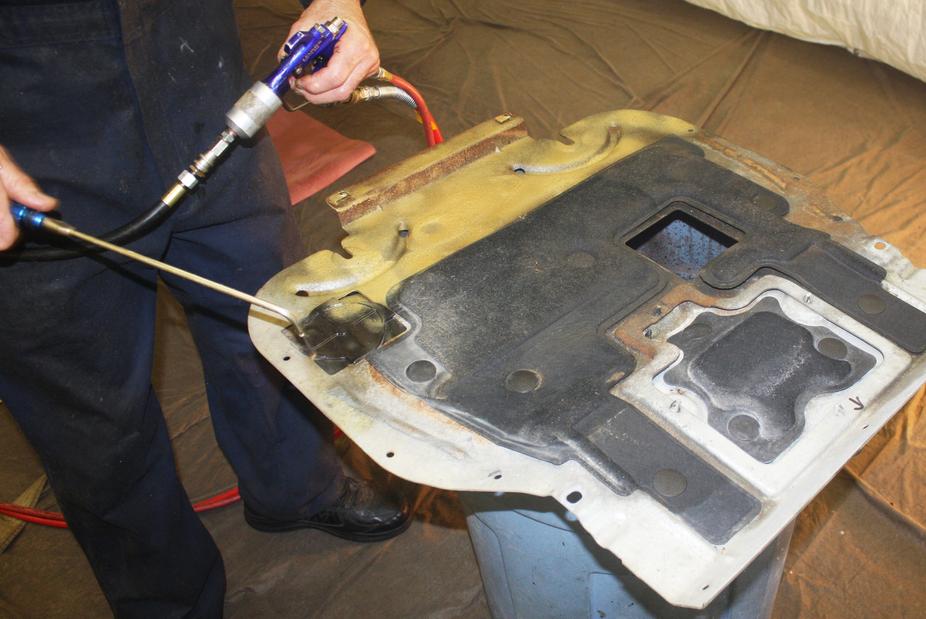

Rustproofing being applied to the upper side of the transfer case cover.

------------------------

After Undercoating

-------------------------

AFTER: Right rear wheel well

-------------------------

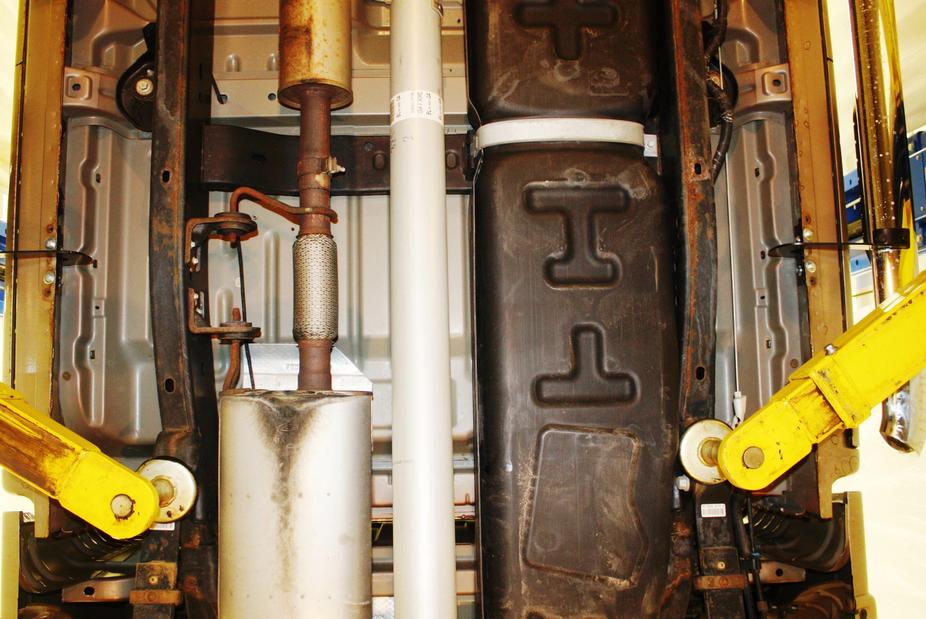

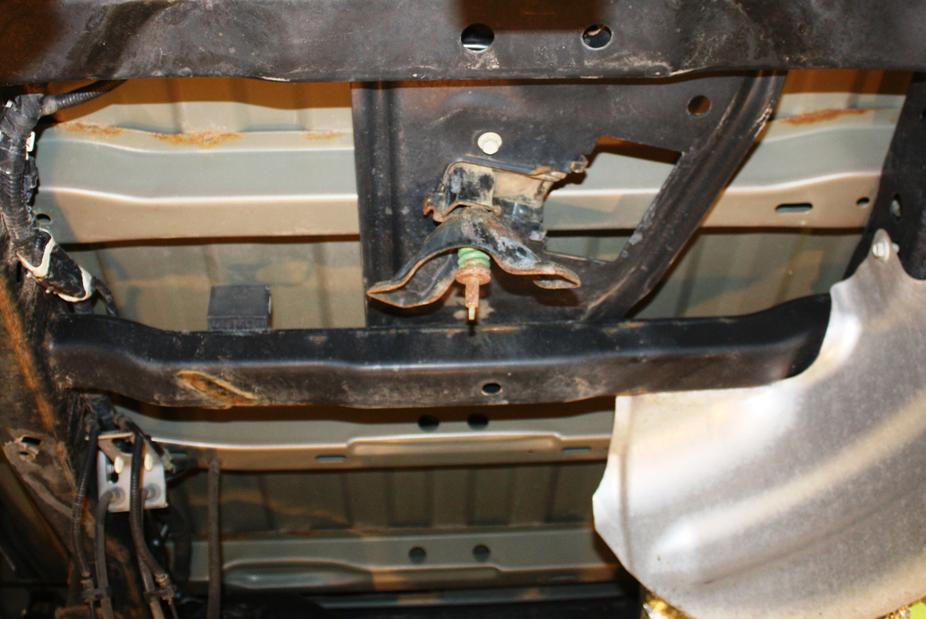

BEFORE: Bottom side of pickup bed (spare tire area)

-------------------------

After Undercoating


-------------------------

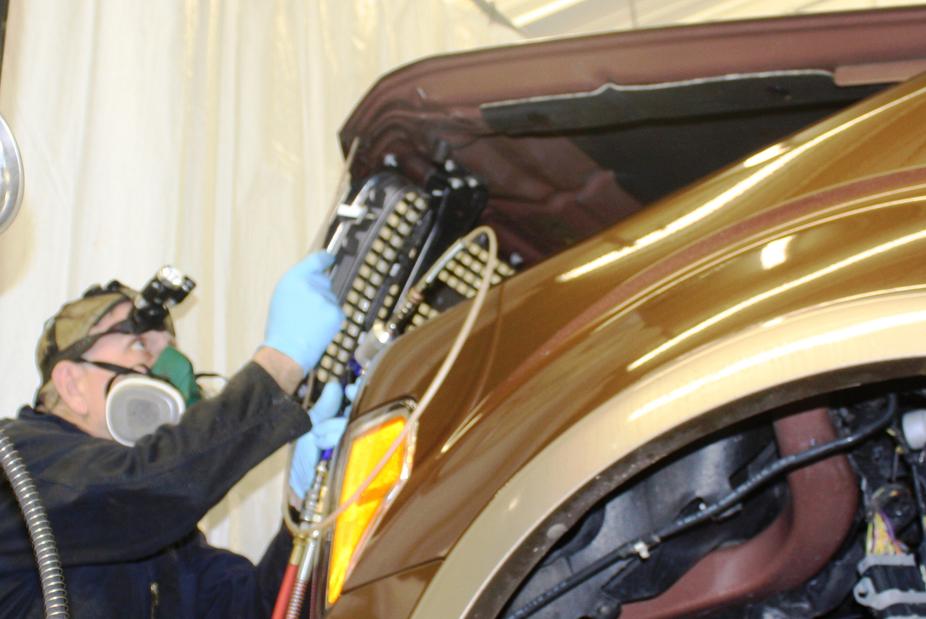

Rustproofing being applied to engine hood.

-------------------------

Finally, the outside of the vehicle is washed to remove any undercoating - rustproofing overspray from the outside body.

-------------------------

Before Undercoating

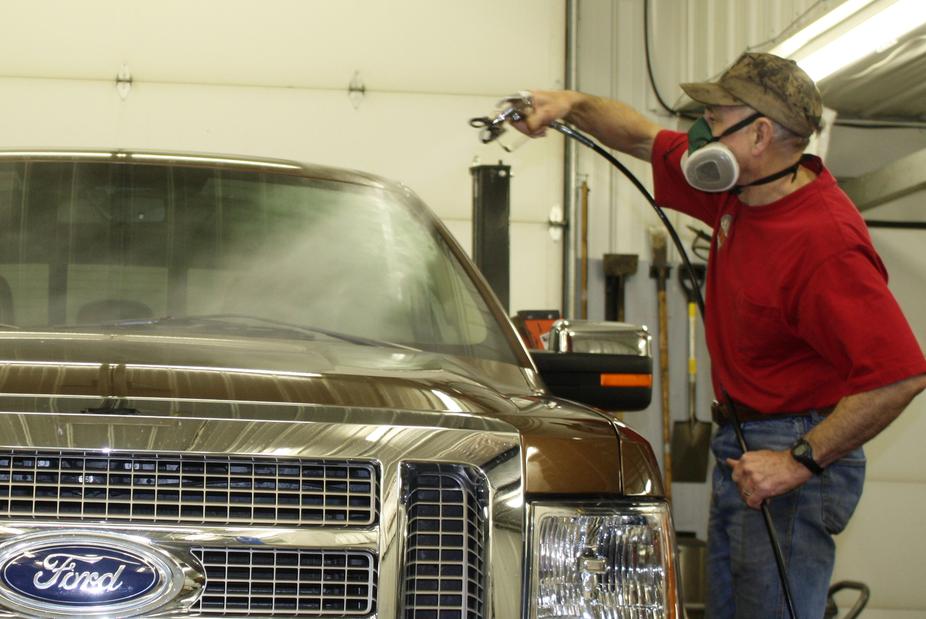

​A masking spray is applied over the outer surfaces of the vehicle to keep the undercoating and rustproofing materials from sticking to the glass, trim and paint finish.

-------------------------

Before and After


Here are some BEFORE & AFTER Close ups that show what the underside looks like.

-------------------------

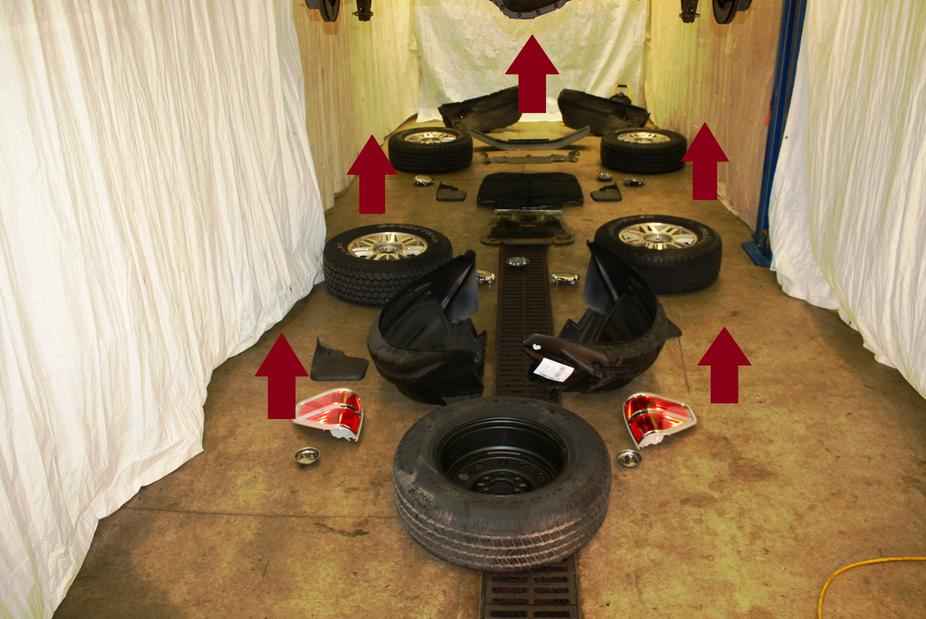

The parts that were removed for better access are now reinstalled.

-------------------------

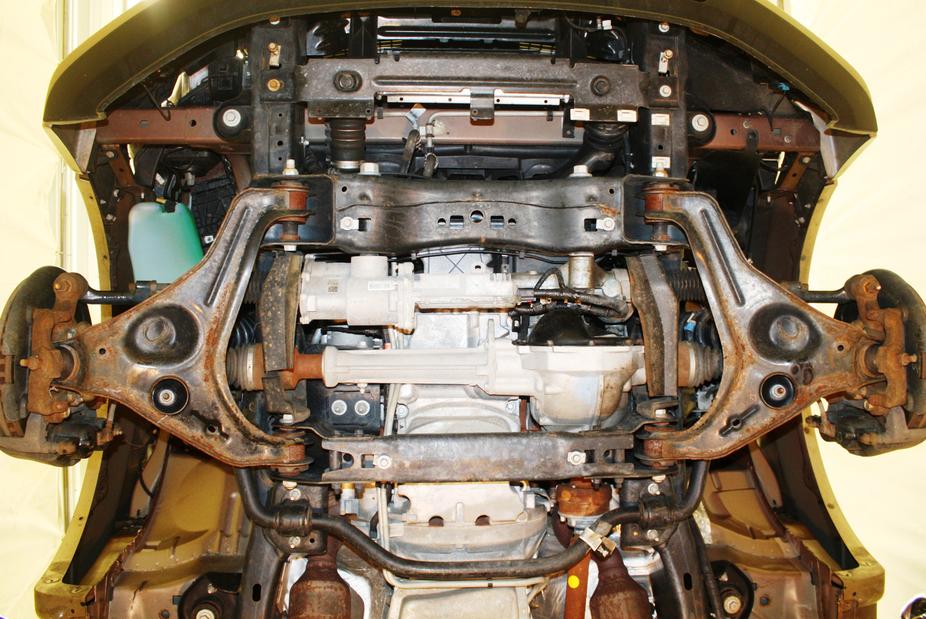

BEFORE: Front axle

Thanks Scott!





-------------------------

BEFORE: Rear axle

-------------------------

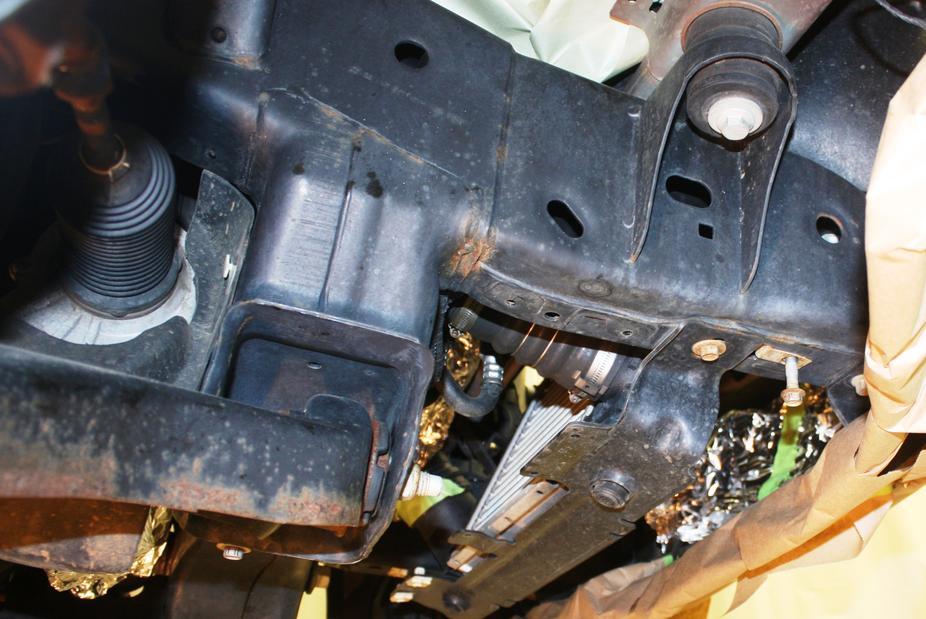

BEFORE: Right front frame horn

-------------------------

Before Undercoating

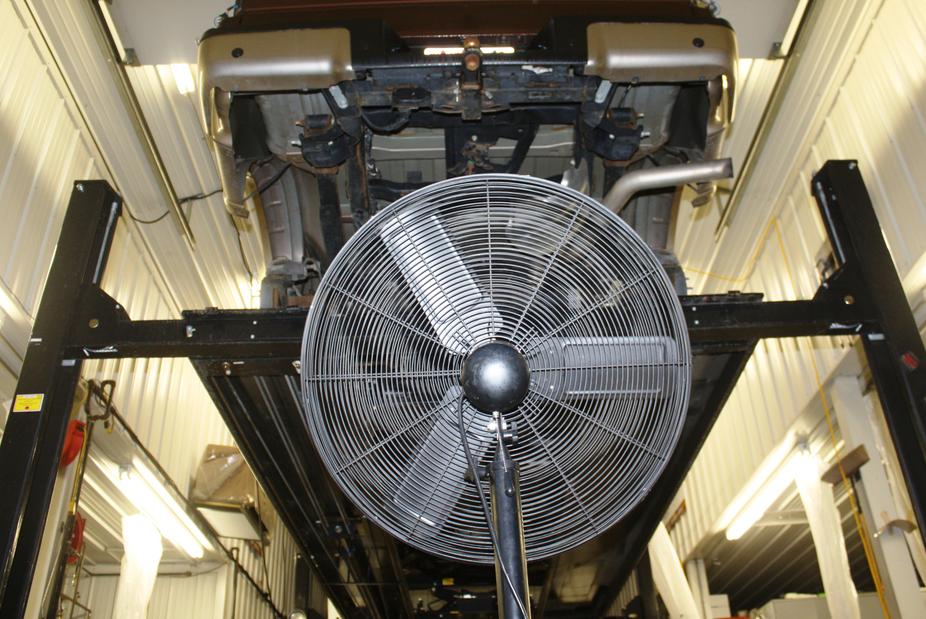

Any pockets of water are blasted out with compressed air and large fans are setup to aid the drying process.
